BenQ AW30ST 3200-Lumen Short Throw WXGA LED Golf Simulator Projector

BenQ AW30ST Short Throw LED Projector – 3200 Lumens, WXGA

Bring the golf course indoors with the BenQ AW30ST, a short throw LED projector engineered specifically for golf simulators. Its compact design fits perfectly in garages, low-ceiling rooms, or small spaces, delivering bright, sharp images while leaving ample room for your swing.

Optimized for Golf Simulators

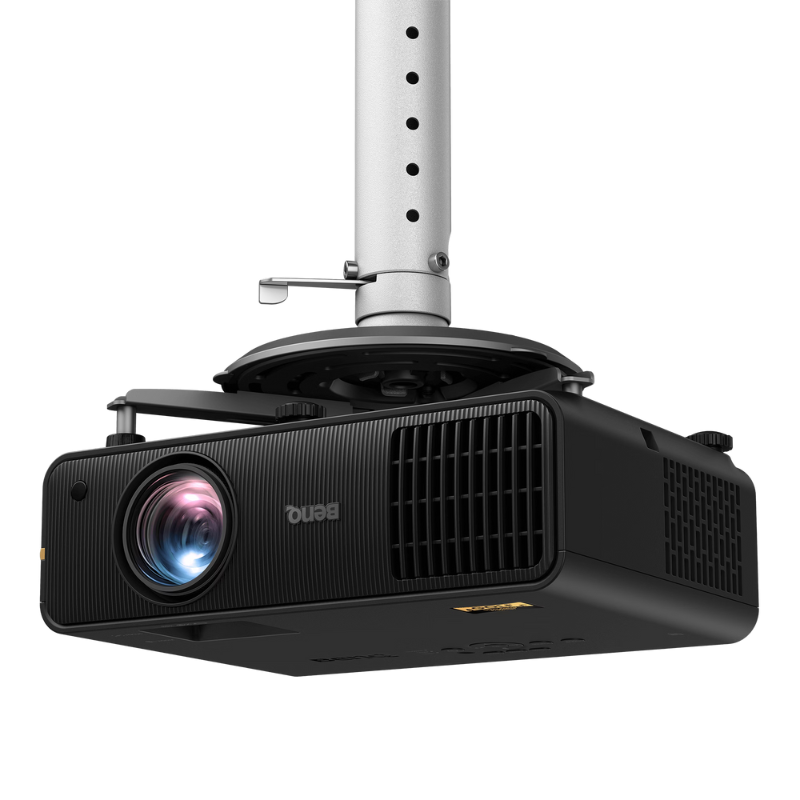

The AW30ST features a short throw lens with 100% vertical offset, allowing the projector to be positioned behind the golfer. This setup eliminates shadows, glare, and accidental club contact, creating a clean hitting area and perfectly aligned visuals every time.

Immersive Visual Experience
Equipped with BenQ’s 4LED light engine and Golf Mode color tuning, the projector produces realistic greens and fairways with exceptional clarity, making every practice session feel like playing on an actual golf course.

Key Features

• Short Throw for Small Spaces: Projects large images from a short distance, ideal for garages or rooms with limited space.

• Shadow-Free Swing Area: Rear mounting keeps the projection path clear, allowing confident swings.

• Large, Crisp Image: Supports 100" to 170" screens with consistent brightness and sharp focus.

• Realistic Course Colors: Golf Mode enhances contrast and terrain tones for an authentic outdoor experience.

• Easy Setup: Utilize BenQ Golf-Sim 3D Planner and automatic Screen Fill adjustment for accurate image alignment.

• Wireless Ready: Optional EZC-5201BS Wi-Fi module enables smooth 1080p wireless casting.

• Versatile Use: Enjoy movies, sports, or gaming with 95% Rec.709 color coverage and Cinema Mode.

Reliable, Low-Maintenance Performance

• 4LED light source rated up to 30,000 hours in Eco Mode

• No lamp replacements required, reducing long-term costs

• Sealed, filter-free chassis protects against dust

• Energy-efficient operation consumes less power than traditional projectors

• TÜV and UL certified for dependable daily use

What’s Included

• BenQ AW30ST 3200-Lumen Short Throw LED Projector

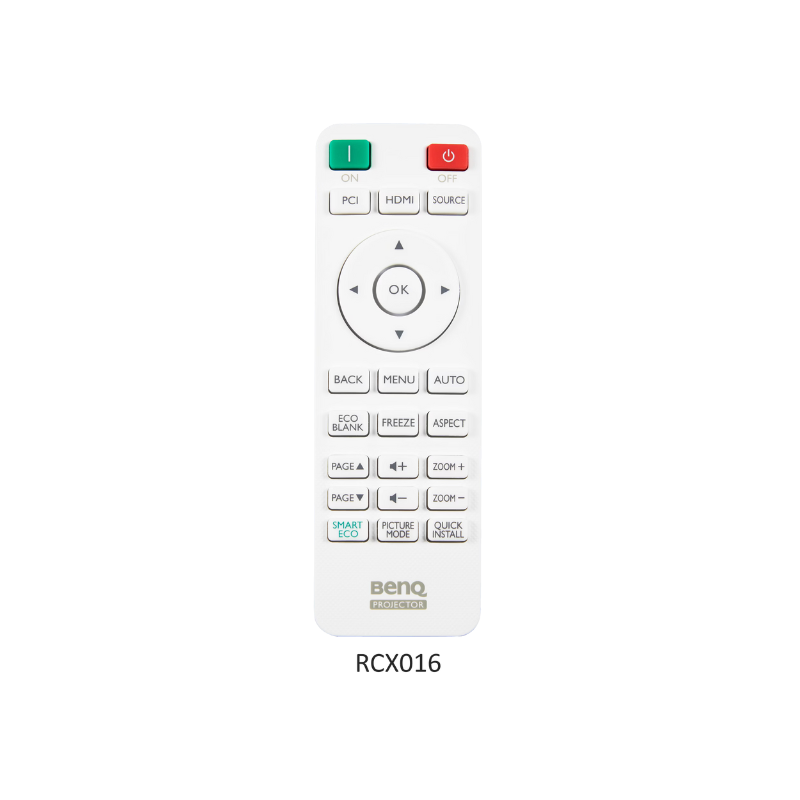

• Remote Control with Battery (RCX016)

• Power Cord (1.8 m)

• Lens Cover

• Quick Start Guide

• Warranty Card

• QR Code Service Sticker

Technical Specifications

Display & Image

• Brightness: 3200 ANSI Lumens

• Resolution: WXGA (1280 × 800)

• Aspect Ratio: 16:10

• Contrast Ratio: 20,000:1

• Color Depth: 30-bit (1.07 billion colors)

• Light Source Life: 20,000 hrs (Normal) / 30,000 hrs (Eco)

Optics

• Throw Ratio: 0.72–0.87

• Zoom: 1.2×

• Projection Offset: 100%

• Keystone Correction: Vertical & Horizontal ±30°

Performance

• Input Lag: 33.4 ms (1080p @ 60Hz)

• Color Coverage: 95% Rec.709

• Picture Modes: Golf, Cinema, Game, Bright, sRGB, User

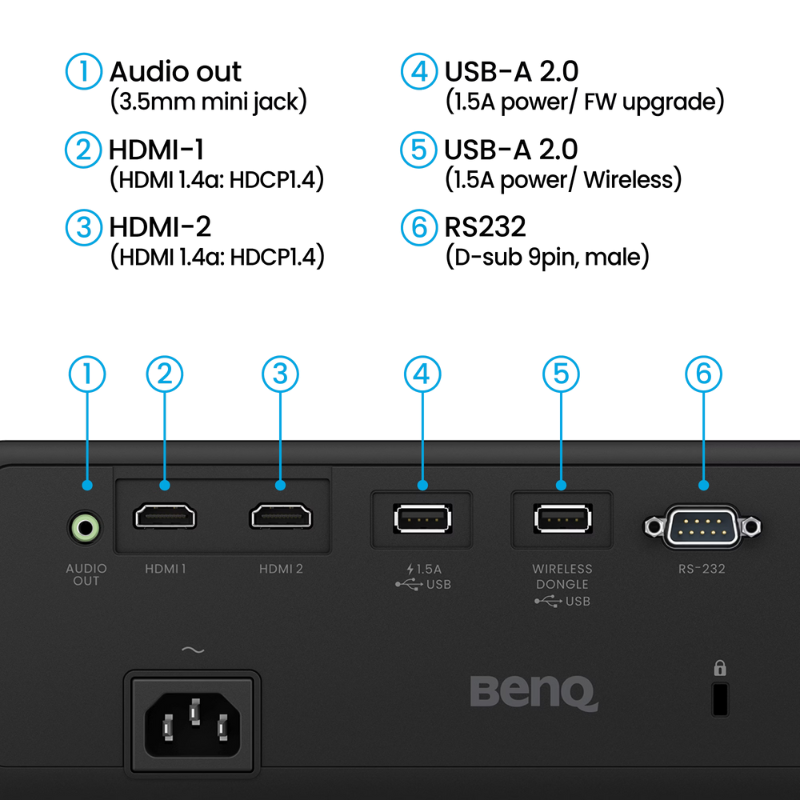

Connectivity

• 2 × HDMI (HDCP 1.4)

• 2 × USB Type-A

• RS-232 Control

• 3.5 mm Audio Out

Audio

• Built-in 10W Speaker

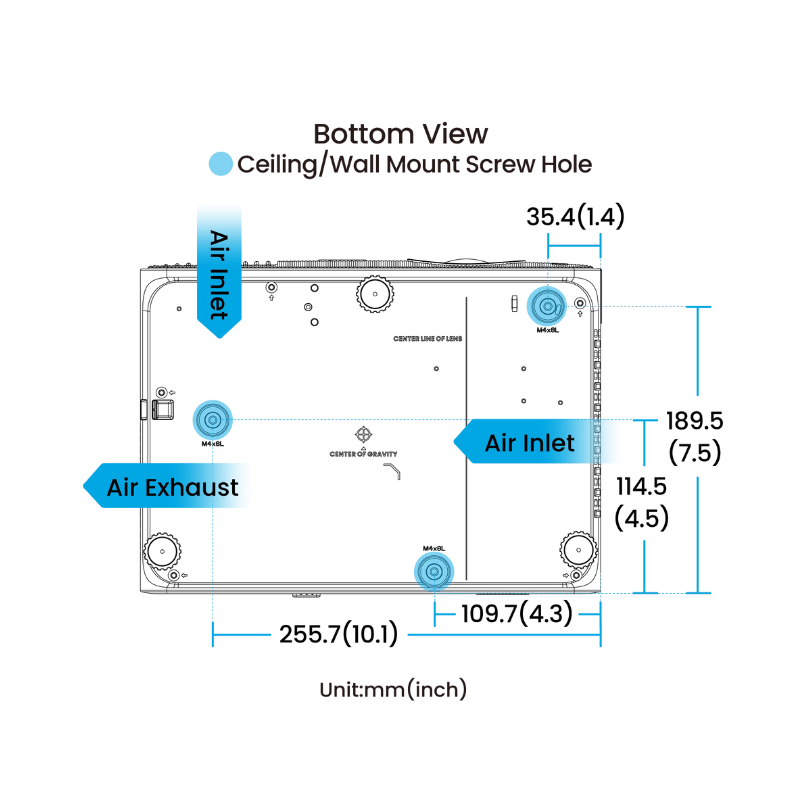

Physical & Power

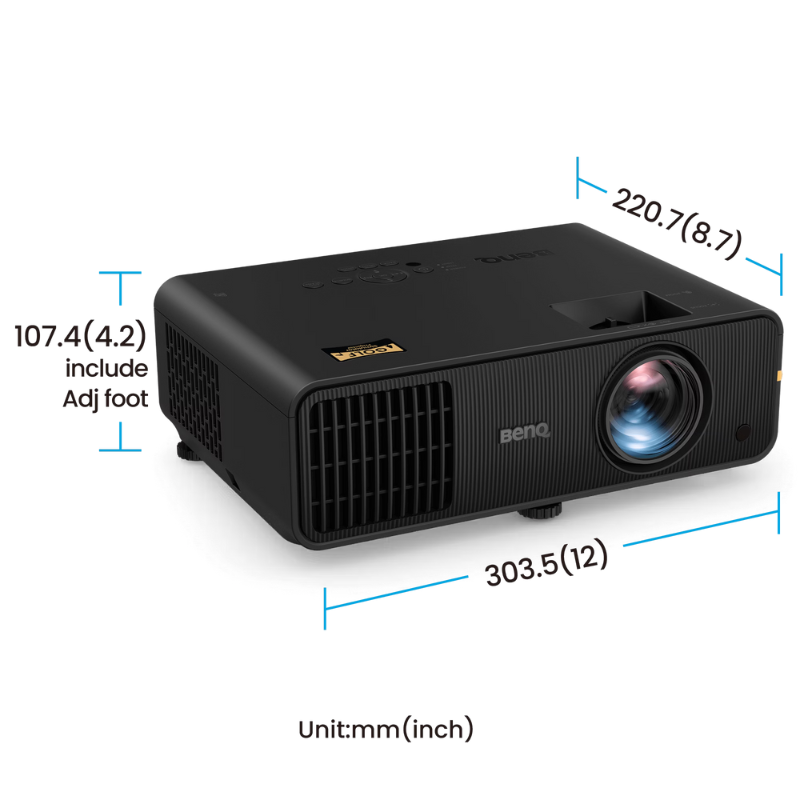

• Dimensions: 11.95" × 4.23" × 8.69"

• Weight: 5.84 lbs (2.65 kg)

• Power Consumption: 237W (Typical)

• Noise Level: 32 dBA (Normal) / 28 dBA (Eco)

FAQs

• Can it be mounted behind the golfer?
  Yes, the short throw lens and vertical offset make rear placement ideal.

• Is it suitable for garages or dusty rooms?
  Yes, the sealed, filter-free chassis protects internal components and minimizes maintenance.

• Does it support wireless projection?
  Yes, with the optional EZC-5201BS Wi-Fi module.

• How long will the LED light source last?
  Up to 30,000 hours in Eco Mode, providing years of maintenance-free use.

Resources

• BenQ AW30ST User Manual

• BenQ AW30ST Quick Start Guide
