BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector

Bring your indoor golf experience to life with the BenQ AH500ST, a high-performance short throw projector designed specifically for golf simulation. Combining advanced laser technology, accurate color reproduction, and intuitive features, it provides a fully immersive and realistic practice environment.

Optimized Golf Simulation
The BenQ AH500ST features Golf Mode, ensuring true-to-life rendering of greens, fairways, and sky tones for an authentic golf experience. Its Screen Fill technology automatically adjusts to different screen sizes and aspect ratios, removing the need for manual calibration.

Outstanding Image Quality
With 4000 lumens of brightness and a 3,000,000:1 contrast ratio, the AH500ST delivers sharp, vibrant images even in well-lit rooms. Its sealed, dustproof optical engine protects internal components, reduces maintenance, and ensures consistent performance over time.

Long-Lasting Laser Performance
Equipped with a durable laser light source, the projector offers up to 20,000 hours of operation. Its robust design provides reliable, high-quality performance for years of indoor golf practice.

Key Features

• Automatic Screen Adjustment: Detects your impact screen’s aspect ratio and automatically scales the image for 16:9, 16:10, 4:3, or 1:1 formats.

• Quick Focus: Dedicated remote button allows precise image sharpening in seconds.

• Wireless Projection Ready: Optional wireless dongle enables cable-free streaming from compatible devices.

• Safe Short-Throw Design: With a 0.499 throw ratio, the projector can be positioned behind the player, reducing shadows and minimizing risk of contact.

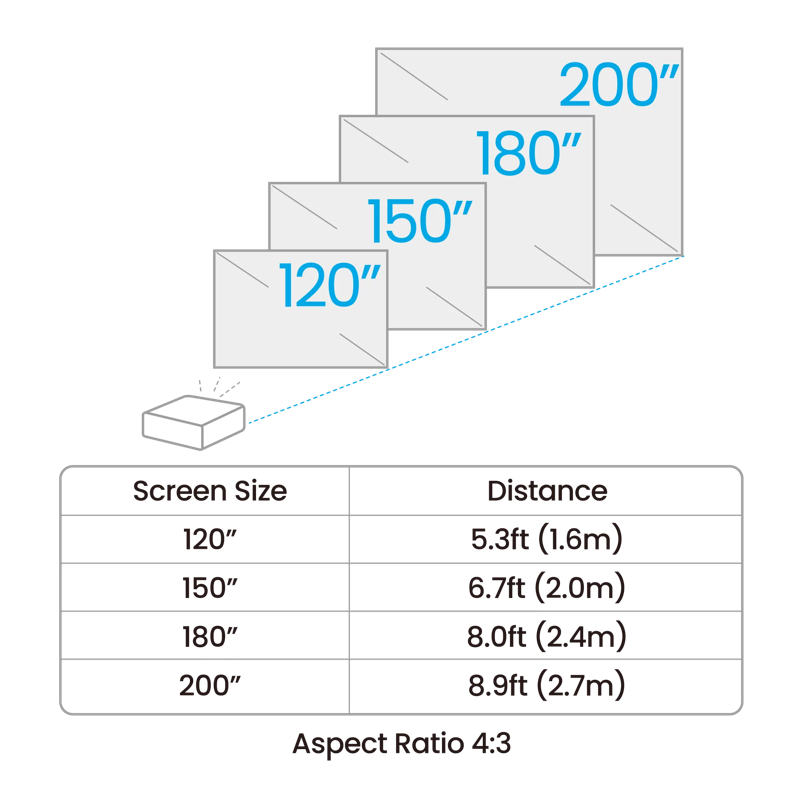

• Large Projection Display: Motorized zoom system adjusts screen size up to 200 inches without moving the projector.

• Vivid Colors: 83% Rec. 709 coverage ensures rich, detailed visuals in any lighting.

• True-to-Life Golf Colors: Golf Mode delivers realistic greens, fairways, and sky tones for immersive gameplay.

• Reliable & Low Maintenance: IP5X-certified sealed optical engine keeps dust out, reducing upkeep.

Included in the Box

• BenQ AH500ST Projector

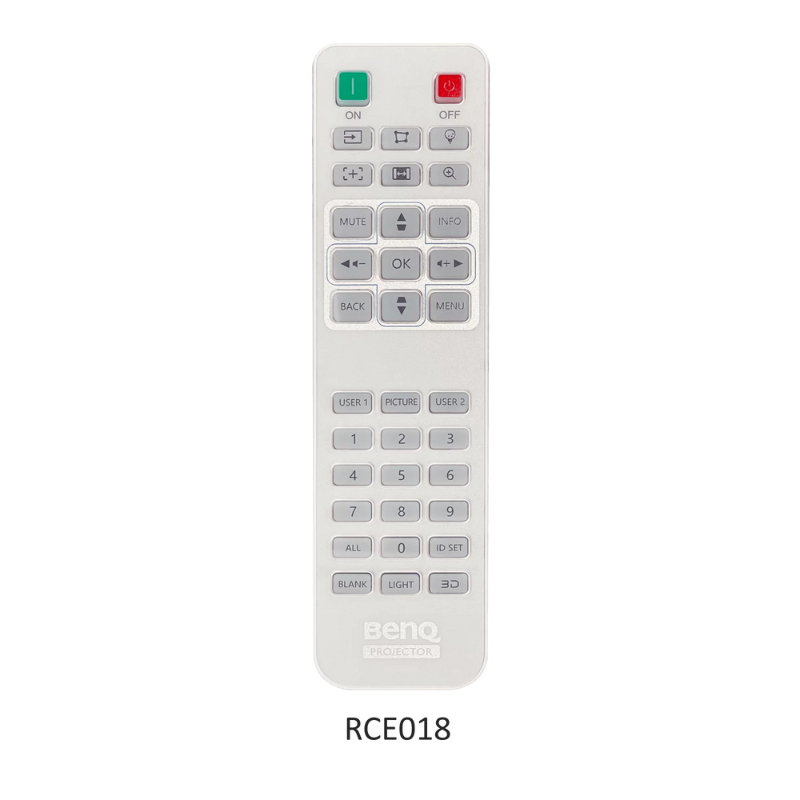

• Remote Control with Batteries

• Power Cord

• Quick Start Guide

• Warranty Card

• Lens Cover

Specifications

Display

• Brightness: 4000 ANSI lumens

• Resolution: 1080P (1920×1080)

• Native Aspect Ratio: 16:9

• Selectable Aspect Ratios: 16:9, 16:10, 4:3, 1:1

• Contrast Ratio: 3,000,000:1

• Display Colors: 30-bit (1.07 billion colors)

• Light Source: Laser

• Light Source Life: Normal 20,000 hrs, ECO 38,000 hrs

Optical

• Throw Ratio: 0.499

• Zoom Ratio: Fixed

• Lens: F#=2.8, f=7.46mm

• Projection Offset: 112%

• Keystone Adjustment: 2D, Vertical ±30°, Horizontal ±30°


• Rec. 709 Coverage: 83%

• Picture Modes: 3D, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1 & 2

Compatibility

• Input Lag: 16.7 ms (1080P 60Hz), 8.3 ms (1080P 120Hz)

• Resolution Support: VGA (640×480) to 4K UHD (3840×2160)

I/O Interface

• HDMI: 2× HDMI 2.0a (HDCP2.2)

• LAN: 1× RJ45

• USB Type A: 1× USB 2.0 / 1× USB for Wireless Dongle

• USB Mini B: 1× service

• RS232: 1× DB-9pin

Audio

• Built-in Speaker: 10W

• Audio Out: 3.5mm mini jack

Environment

• Operating Temperature: 0–40°C

• Power Supply: AC 100–240V, 50/60Hz

• Typical Power Consumption: 250W

• Stand-by Power: <0.5W

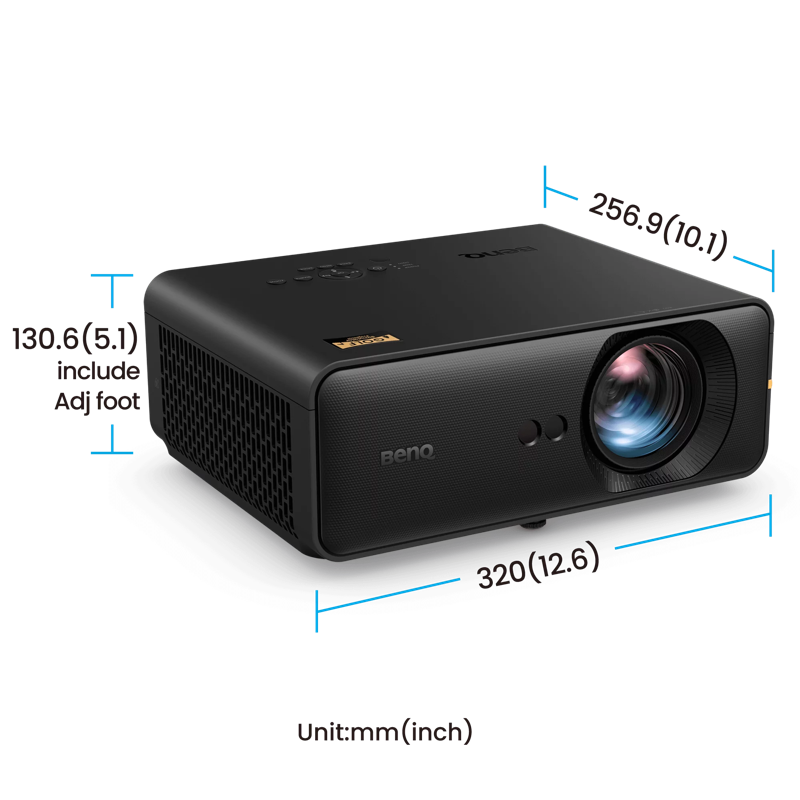

Dimensions & Weight

• 320W × 130.6H × 255D mm (12.6"W × 5.1"H × 10"D)

• Weight: 5.1 kg (11.2 lbs)

Resources

• BenQ AH500ST User Manual
